Beam Clamps

Skopit Beam Clamps – The Structural Steel Clamping System

Specialised engineered clamping and bracket systems for sectors including water, waste, energy, oil & gas, mining, and petrochemical. As your trusted global partner, particularly in the Asia Pacific region, we focus on reducing risk and enhancing efficiency during the installation phase of your projects. Our team is ready to design and manufacture solutions tailored to your needs.

The structural steel clamping system is a robust industrial fastener for structural steel infrastructure.

It is an engineered beam clamp that is designed to secure mechanical and electrical services and equipment to Australian Standard Universal Beams and Columns. Quick attachment for long pipe/electrical runs in a mineral or oil/gas processing facility/refinery.

i

Eliminates hot works

  • The Skopit Beam Clamp removes the need for hot works during installation, reducing downtime and enhancing safety in hazardous environments.
  • Keep the structural integrity of the structure.
  • Avoid work crews waiting for hot work permits.
  • Avoid or reduce plant shutdown in some cases.
i

Minimize metal corrosion and reduce dropped objects hazards

  • Manufactured from heavier gauge steel and galvanised coated to reduce
    corrosion issues.
  • No hinged parts or exposed raw steel.
i

Quick and easy bolt - up solutions

  • Specialised tooling not required.
  • Job front open for minimal time.
i

Totally versatile and adaptable to other supports

  • The Skopit Beam Clamp offers remarkable versatility and adaptability, accommodating a wide range of mechanical and electrical services and equipment.
i

Permanent or temporary

  • Whether you require a permanent or temporary installation, the Skopit Beam Clamp offers flexible options to suit your specific needs
i

Trade persons not essential for installation.

  • Specialised contractors not essential.
  • Utilise site riggers, plant workers or T/As.
i

Engineered load rating

  • Our clamp is engineered to handle direct loads and side loads, providing
    maximum strength and reliability in heavy – duty applications.
Product code SSC410UB ready to send to client

Product code SSC410UB ready to send to client

Transportable building

Transportable building

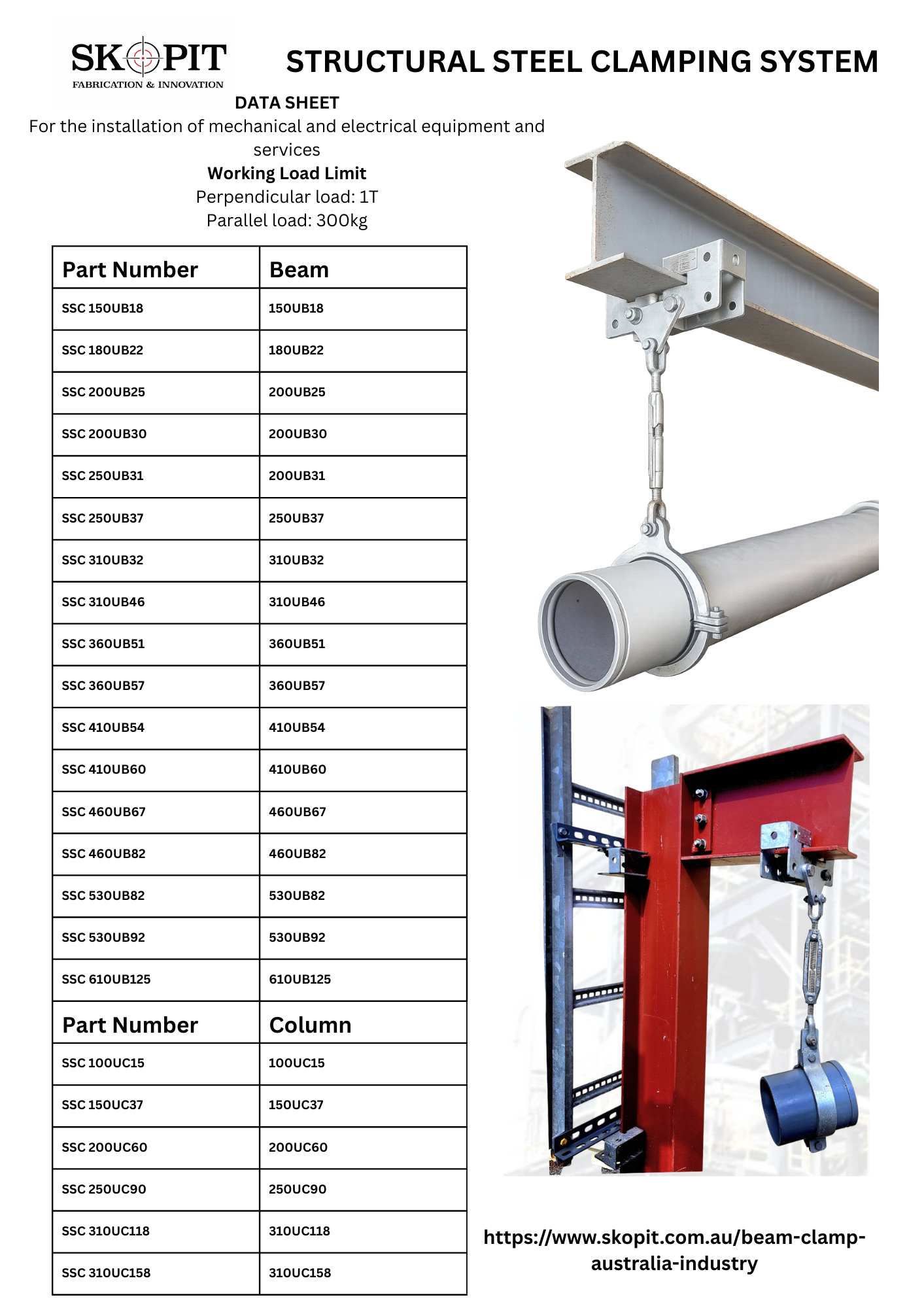

Certified, rated, and plated

Certified, rated, and plated

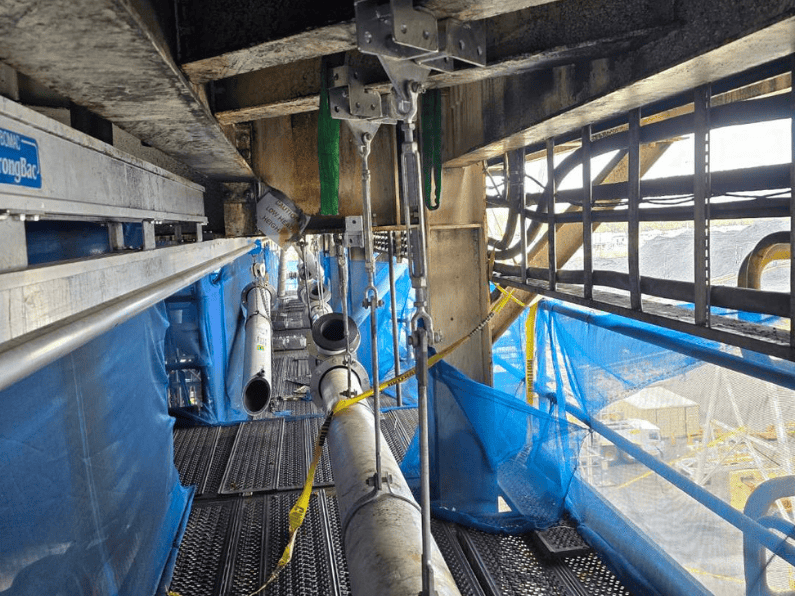

Skopit beam clamps for all types of support systems

Skopit beam clamps for all types of support systems

Davit arm attached to steel column with Skopit beam clamp

Davit arm attached to steel column with Skopit beam clamp

Ready to accommodate high pressure hoses and electrical leads instead of lying across a workshop floor.

Unlocking the Power of Beam Clamps in the Australia Industry



Chances are, you’ve come across beam clamps before, but the real magic happens when you need one, and you realize what they can do. If you’re not quite familiar with these nifty tools, don’t fret! We’re here to break it all down for you.

At Skopit Fabrication and Innovation, we’re all about putting the customer first. In this article, we’re diving deep into the world of beam clamps, exploring what they are and how they can help you and your business challenges head-on.



What Are Beam Clamps?



Beam clamps, also known as girder clamps, are temporary fixing solutions designed to suspend or secure mechanical and electrical services for:

  • Fixtures
  • Wires
  • Threaded rods
  • Other hardware

They offer a portable and straightforward way to attach a hoist to a runway or lifting beam.



Different Types of Beam Clamps

Beam clamps come in a variety of forms. This includes:

Standard Clamps: These feature a set of jaws that open and close using a threaded handle, providing a stationary attachment point.

Geared Beam Trolleys: Similar to plain clamps, they have wheels fitted with gears and a chain, providing precise control over load movement.



Advantage of Skopit Beam Clamps in the Australia Industry

1. Eliminates Hot Works
The Skopit Beam Clamp eliminates the need for hot work, enhancing safety and reducing downtime in hazardous environments.
No more work crews waiting for hot work permits or plant shutdowns in some cases.

2. Quick and Easy Installation
Enjoy a hassle-free bolt-up solution, with no need for specialized tooling.
Minimise job site downtime, as the front remains open for a minimal amount of time.

3. Reduced Dependency on Trade Persons
Trade persons and specialised contractors in Australia are not essential for installation.

Utilise site riggers, plant workers, or T/As to get the job done efficiently.

4. Minimise Metal Corrosion and Dropped Objects Hazards
Skopit beam clamps are manufactured from heavier gauge steel and galvanised coated to reduce corrosion issues.

No hinged parts or exposed raw steel, reducing hazards.

5. Versatile and Adaptable
The Skopit Beam Clamp offers remarkable versatility, accommodating various mechanical and electrical services and equipment.

It’s totally adaptable to other support systems.

6. Engineered Load Rating
These are engineered to handle direct loads and side loads, providing maximum strength and reliability in heavy-duty applications.

7. Provides Permanent or Temporary Solutions
Whether you need a permanent or temporary installation, the Skopit Beam Clamp provides flexible options to suit your specific needs.



List of Common Australian Industries that Need Beam Clamps

You’ll find beam clamps frequently used in industries such as:

  • Transportation
  • Steel
  • Mining
  • Construction



How to Choose the Right Style of Beam Clamp



The choice of the right beam clamp depends on your specific needs. Different steel types and weight ranges are available, but always be aware of weight thresholds to ensure safe lifting. Some of the key factors you should remember include:



  • Type of clamp (adjustable/non-adjustable, scissor, screw, or bolt action)
  • Capacity and beam size
  • Suitability of the beam
  • The type of lifting appliance to be used
  • Whether the application is temporary or permanent



How to Properly Install Beam Clamps



Proper installation is crucial to avoid damage or injury. Follow these simple steps:



  • Open the jaws of the clamp to fit over the beam.
  • Use the screw handle to secure the clamp tightly, ensuring it can support the load without slipping or falling.
  • Most installations are straightforward, but be aware of safety precautions and guidelines specific to your setup.



Safety Measures When Installing Beam Clamps



Safety should be the top priority in any industry. Here are some precautions to consider:



  • Conduct thorough checks before and after using the clamp.
  • Always use a safety hook to attach any suspending attachment to prevent disconnection.
  • Ensure the right clamp for the job, considering the Working Load Limit (WLL).
  • Verify compatibility with other equipment; never force pieces together.
  • Position the beam over the center of gravity of the hoisted load to ensure stability during lifting.



Is Your Business in Australia in Need of Beam Clamps?



Now, you have a comprehensive understanding of beam clamps, their types, usage, and safety considerations. You’re better equipped to choose the model that suits your Australia company’s needs, avoid accidents, and ensure workplace safety.

If you’d like to explore how beam clamps can specifically benefit your business, just reach out to Skopit Fabrication and Innovation. We’re here to provide solutions tailored to your unique business challenges. Whether it’s beam clamps or other equipment, we’ve got you covered!
